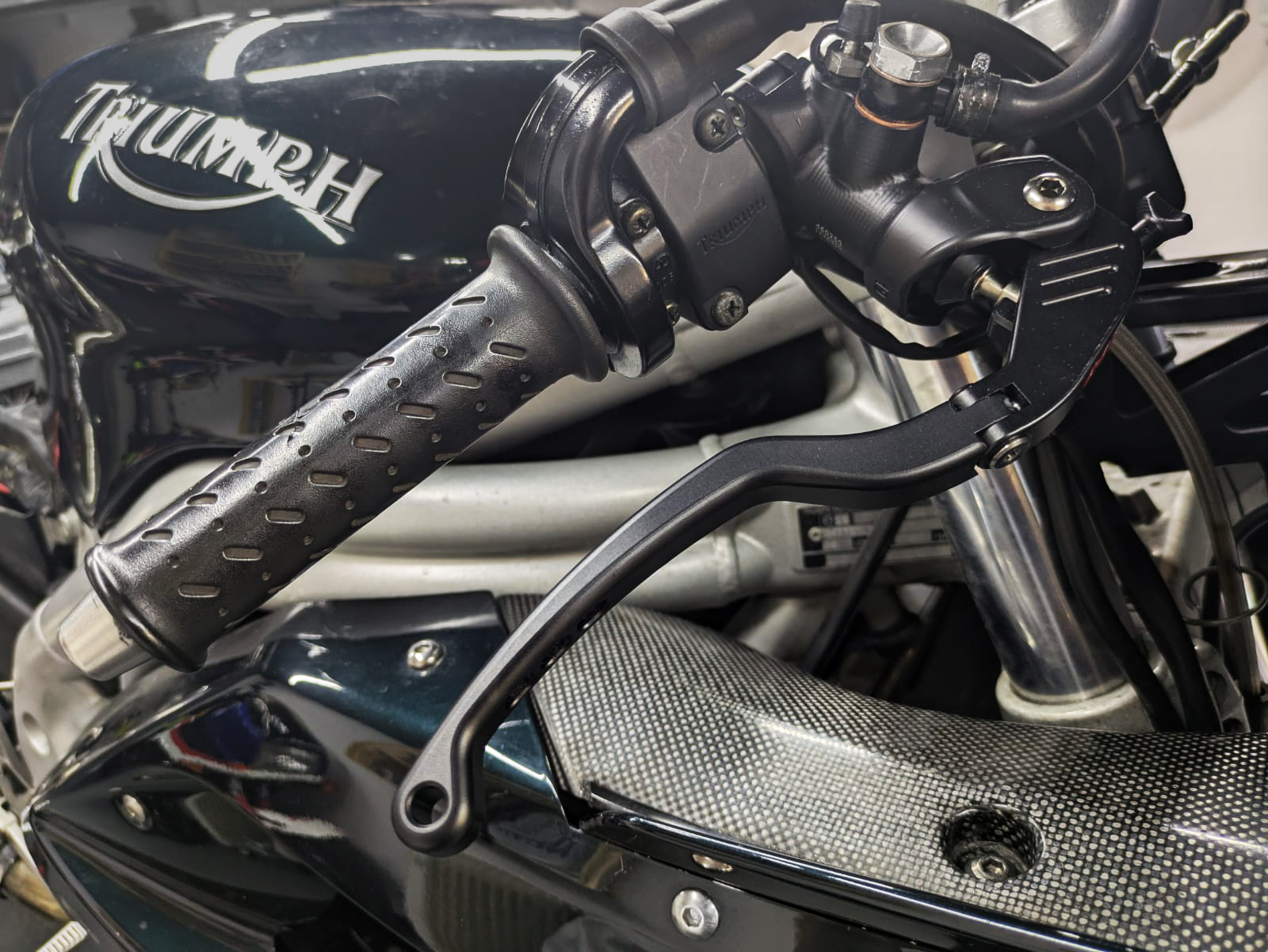

HEL Billet Brake & Clutch Master Cylinders

Fully CNC Machined Billet Master Cylinders from HEL Performance

Each master cylinder is CNC machined from solid billets of 6082-T6 aluminium, individually finished and assembled by hand and come with the latest design which allows three leverage ratios from one lever. Providing you with the ultimate adjustability in brake lever feel, modulation for smooth and controllable stopping power.

The lever features a lozenge shaped hole into which one of two plugs are inserted, One has an offset hole – with the hole nearest the master cylinder you get a -1 ratio. If you rotate the plug 180 degrees it offers you a +1 ratio and if you use the plug with a central hole you obtain a 1:1 ratio.

This means that with a 16mm piston master cylinder you can obtain a 15/16, 16/16 and 17/16 from one lever and two inserts.

With the 19mm piston master cylinder you can obtain an 18/19, 19/19 and a 20/19 from one lever and two inserts.

Lever Ratios
16 – Single front brake caliper
18 – More lever travel and 'feel' on twin caliper systems (larger CC models)
19 – Average lever travel but firmer feel – a good all rounder
20 – Less lever travel and the 'firmest feel' on the lever

• Available with standard or folding lever
• Bleed nipple and banjo bolt/fluid outlet thread: M10 x 1.0mm
• Includes Single & Double Banjo Bolt (without brake light switch)
• Available in Black or Grey finish
• Optional compatible Brembo reservoir can also be added below

Fully CNC Machined Billet Master Cylinders from HEL Performance

Each master cylinder is CNC machined from solid billets of 6082-T6 aluminium, individually finished and assembled by hand and come with the latest design which allows three leverage ratios from one lever.

The lever features a lozenge shaped hole into which one of two plugs are inserted. One has an offset hole – with the hole nearest the master cylinder you get a -1 ratio. If you rotate the plug 180 degrees it offers you a +1 ratio and if you use the plug with a central hole you obtain a 1:1 ratio. This means that with this 16mm piston master cylinder you can obtain a 15/16, 16/16 and 17/16 from one lever and two inserts.

With the 19mm piston master cylinder you can obtain an 18/19, 19/19 and a 20/19 from one lever and two inserts.

This is particularly valuable as it enables you to alter the progressiveness/feel and bite-point of your clutch.

• Available with standard or folding lever
• Bleed nipple and banjo bolt/fluid outlet thread: M10 x 1.0mm
• Includes Banjo Bolt
• Available in Black or Grey finish
• Optional compatible Brembo reservoir can also be added below

Machined from solid aluminium billet - in a style to match the HEL Performance master cylinders - and incorporating an electrical switch to enable wiring into your bike’s harness for clutch / starter interlocking, where required.

Available with a standard or folding lever in black with the body finished in a choice of Black or Dark Grey.

Fully CNC machined from solid billet aluminium, the HEL rear master cylinder has been designed in a square format to sit and blend effortlessly behind the heel plate on all models.

• 13mm bore/piston diameter
• M10 x 1.0mm banjo bolt fluid outlet fine thread port
• 39 to 49mm bolt pitch/distance slotted mounting holes to provide wider mounting bracket compatibility
• Finished in either black or hard anodised grey
• Uses your bike's original fluid reservoir
• Includes remote rod end clevis, banjo bolt and copper crush washers

This master cylinder replaces the single line reservoir on a conventional rear system with a twin input and output line system for the addition of, for example, a thumb brake.

The input line hose (for example from a thumb brake to the rear master cylinder) acts as the output hose's reservoir and vice versa, enabling either braking method to be employed (i.e. thumb or foot) as required.

Includes a M10 x 1.00 (output) and M12 x 1.00 (input) banjo bolts and copper crush washers to allow you to connect both foot control and hand control to the rear caliper.

Fully CNC machined from solid billet aluminium, the HEL rear master cylinder has been designed in a square format to sit and blend effortlessly behind the heel plate on all models.

• 13mm bore/piston diameter
• M10 x 1.0mm & M12 x 1.0mm banjo bolt fluid outlet/inlet fine thread ports
• 39 to 49mm bolt pitch/distance slotted mounting holes to provide wider mounting bracket compatibility
• Finished in either black or hard anodised grey
• Includes remote rod end clevis, banjo bolts and copper crush washers

Very neat and high-quality universal replacement clutch master cylinder reservoir. Suitable for HEL Brake & Clutch Master Cylinders.

• Designed for HEL Radial Master Cylinders but will also install on many other makes of master cylinder with little or no modification
• Durable cap
• Includes universal mounting bracket for use with HEL Master Cylinders, connecting hose and pipe clips

Very neat and high-quality universal replacement clutch master cylinder reservoir. Suitable for HEL Brake & Clutch Master Cylinders.

• Designed for HEL Radial Master Cylinders but will also install on many other makes of master cylinder with little or no modification
• Durable cap
• Includes universal mounting bracket for use with HEL Master Cylinders, connecting hose and pipe clips
